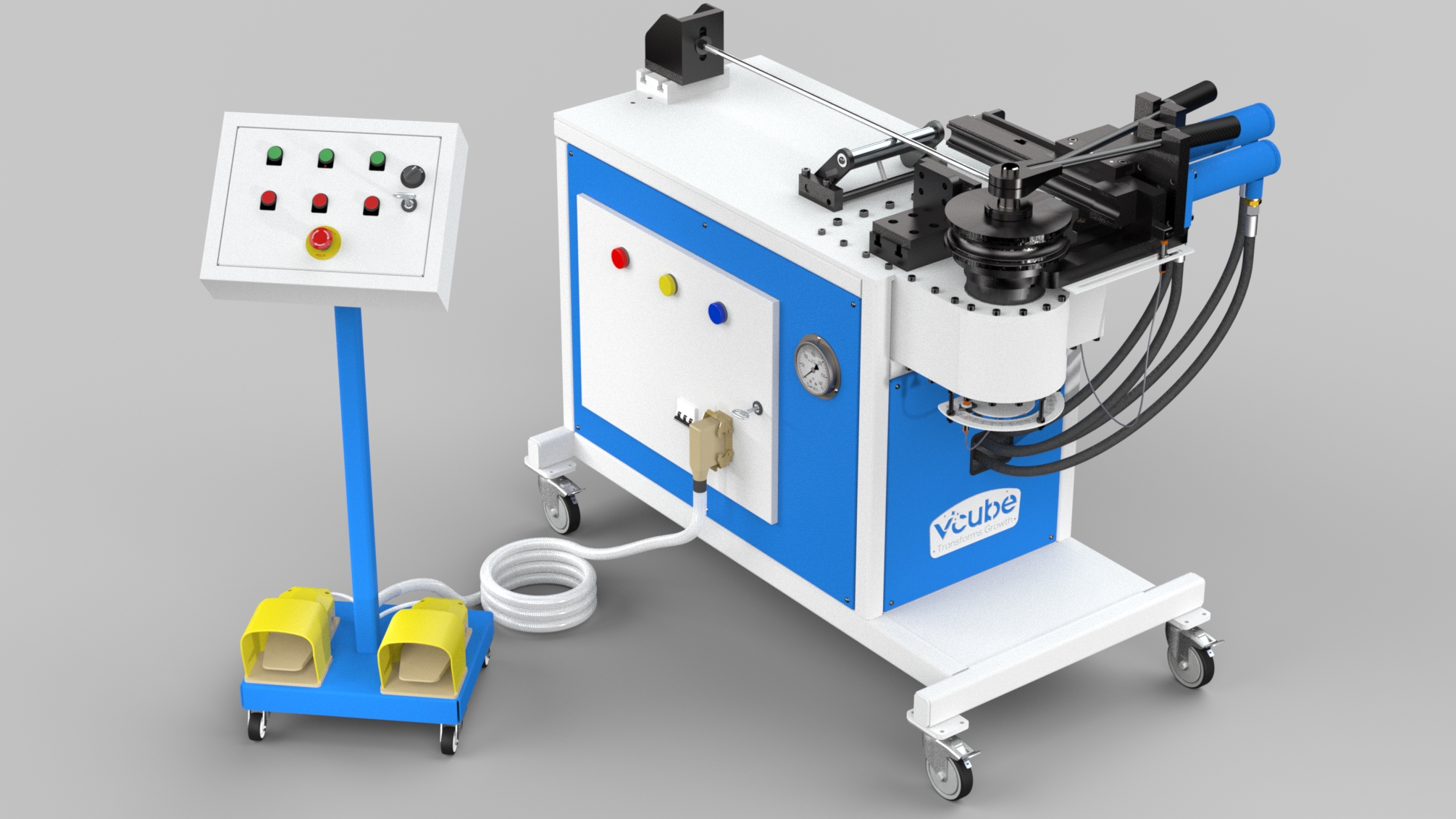

Pipe Bending Machine VCM/HBS32
The VCM/HBS32 Pipe Bending Machine features a powerful 2 HP motor with a 40-litre power pack, delivering fast 7-second bends for pipes up to 32 mm diameter and 2.5 mm thickness at a maximum 180° angle. Equipped with heavy-duty 5-ton clamping and support cylinders, a 10-ton bending cylinder, and a 2-ton mandrel, it ensures precise and reliable operation. With compact dimensions (1500x1000x1200 mm) and a sturdy 350 kg build, this machine is ideal for industrial use.
| VCM/HBS 32 | |
|---|---|
| SPECIFICATION | REMARKS |
| Motor | 2 HP, 1440 Motor |
| Power Pack | 40 Litres Tank Capacity |
| Bending Speed | 7 sec/Bend |
| Clamping | 5 Ton Cylinder |
| Supporting | 5 Ton Cylinder |
| Bending | 10 Ton Cylinder |
| Mandrel | 2 Ton Cylinder |
| Runner | Manual |
| Maximum Bending Deg | 180 deg Bend |
| Weight | 350 Kg |
| Capacity | 32 dia X 2.5mm Thick (Max) |
| Size | 1500mm X 1000mm X 1200mm |
