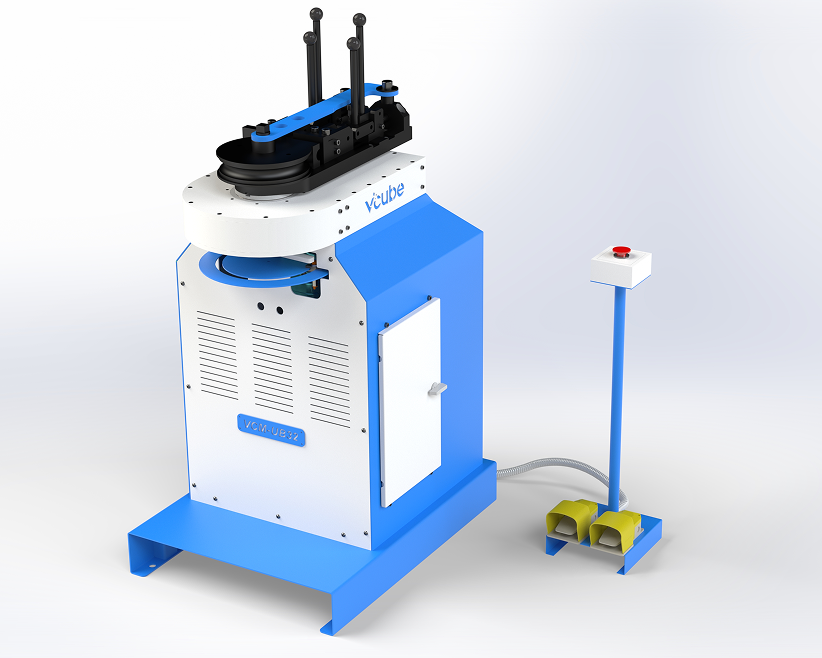

Pipe Bending Machine VCM/UB32
The VCM/UB 32 is a compact and efficient pipe bending machine designed for precision manual bending tasks. Powered by a 1 HP brake motor paired with an inline helical gearbox, it delivers a bending speed of 7 seconds per bend. The machine features manual clamping and supporting mechanisms with adjusting screw toggles, providing reliable control and accuracy during operation. Capable of bending pipes up to 32 mm in diameter and 2.5 mm thick with a maximum bending angle of 180°, the VCM/UB 32 is ideal for light to medium-duty applications. Its sturdy yet lightweight design weighs only 120 kg and occupies a compact footprint of 750 mm × 1000 mm × 1200 mm, making it suitable for workshops with limited space.This machine offers excellent value for users seeking a dependable, manual pipe bending solution.
| MODEL | SPECIFICATION | REMARKS |
|---|---|---|
| VCM/UB 32 | Motor | 1 HP with Brake Motor |
| Gear Box | Inline Helical Gear Box | |
| Bending Speed | 7 sec/Bend | |
| Clamping | Manual with Adjusting Screw Toggle | |
| Supporting | Manual with Adjusting Screw Toggle | |
| Maximum Bending Degree | 180° Bend | |
| Weight | 120 Kg | |
| Capacity | 32 mm dia × 2.5 mm Thick (Max) | |
| Size | 750 mm × 1000 mm × 1200 mm | |
