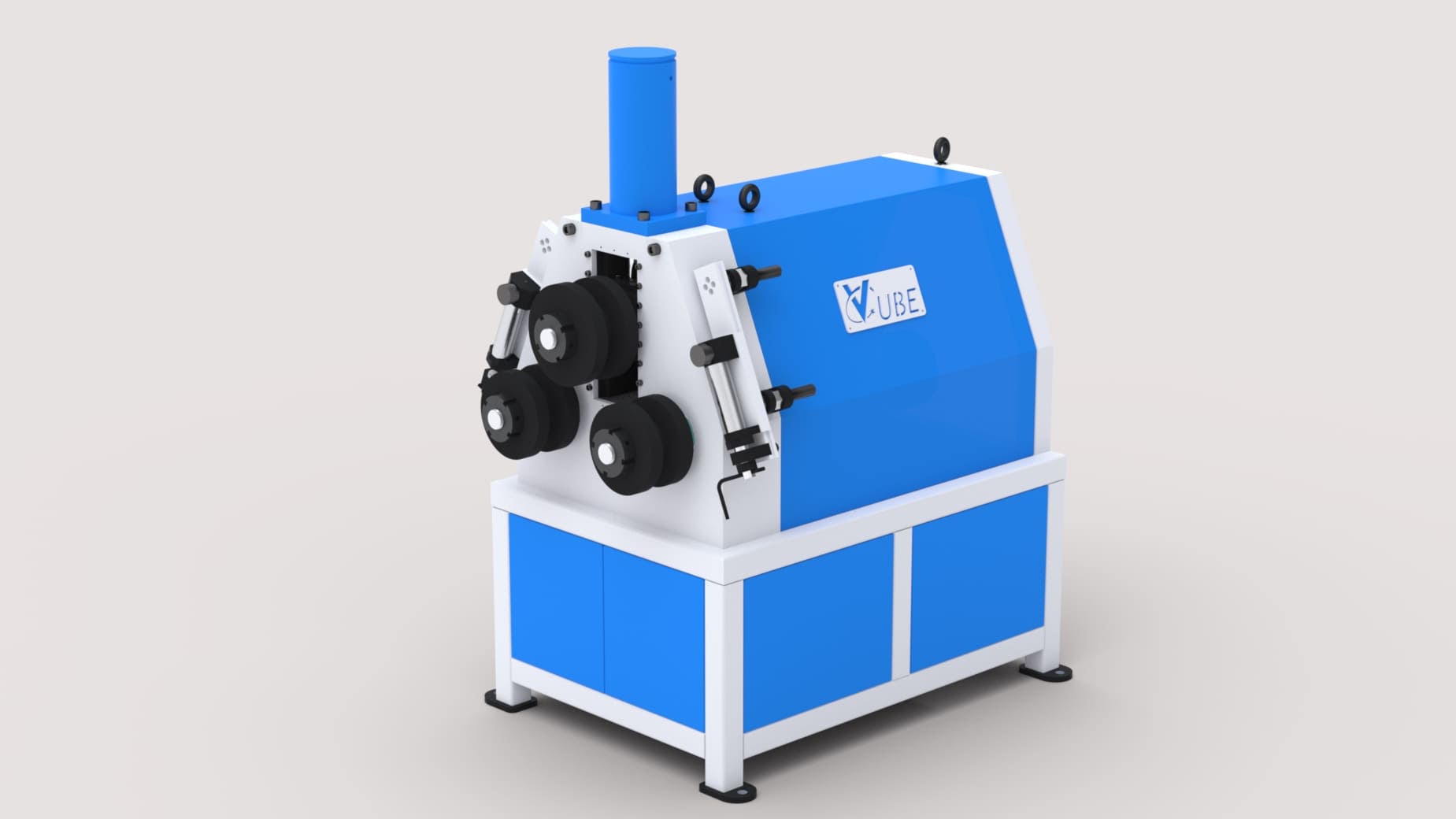

Pipe Rolling Machine VCM /HL100
The VCM/HL100 is a high-capacity, industrial-grade pipe bending machine engineered for heavy-duty applications. Equipped with a powerful 5 HP, 1440 RPM motor and an inline helical gearbox, it operates at a controlled speed of 7 RPM, ensuring precise and consistent bends. The hydraulic system is powered by a 3 HP, 1440 RPM motor with a 30-litre oil tank, driving two robust 20-ton cylinders capable of handling tough materials with ease. Designed to bend pipes up to 100 mm in diameter and 5 mm in thickness, the VCM/HL100 delivers superior performance for large-scale bending tasks. With a sturdy construction weighing 1200 kg and a spacious frame measuring 1000 mm × 1300 mm × 1500 mm, it ensures both strength and stability during operation. Priced at ₹4,00,000 plus tax, this machine is an ideal choice for heavy fabrication industries requiring reliable, high-strength pipe bending solutions.
| VCM/HL100 | |
|---|---|
| SPECIFICATION | REMARKS |
| Motor | 5 HP, 1440 RPM/Inline Helical Gear Box |
| RPM | 7 RPM |
| Power Pack | 3 HP, 1440 Motor, 30 Litres Oil Tank |
| Cylinder Capacity | 20 Ton, 2 Cylinders |
| Size | 1000mm X 1300mm X 1500mm |
| Weight | 1200 Kg |
| Capacity | 100 dia X 5mm Thick (Max) |
